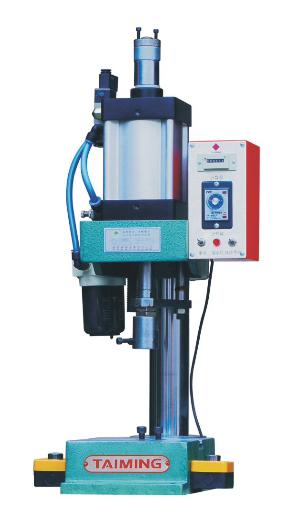

 TM-101系列气动压床特点：
1．以压缩空气为动力源，操作简单。
2．没有油压系统待机时所产生的噪音，可节省电力消耗降低生产成本。
3．气缸行程可调节
4．，特殊行程可定做。
5．出力调整容易，只需调整气压压力，就可达到所需要的压力，简单方便。
6．安全设计，操作舒适，人性化设计，适合长期作业。
7．另可增加发热模具及温度控制器，也可增加测力传感器等。
8．可选配工作台：600*600*720mm（长*宽*高）。
适用范围：
零件装配，微型马达轴心压入，其它铆合，冲孔，切断等作业。
出力KG 行程 气缸内径 行程调节 最大工作高度
100 100 63 50 300
300 100 80 50 300
500 100 100 50 300
800 100 125 50 300
1200 100 160 50 300
2200 100 200 50 300
Features:
1. With pressed air as the power, simple to operate.
2. Making no noise during standby of the oil hydraulic system,saving the electricity and reducing production cost.
3. Cylinder stroke adjustable and custom-made for special request.
4. Easy to adjust the the output; the required pressure can be reached by simply adjusting the pneumatic pressure;easy and convenient.
5. Safe and human-centered design, comfortable and durable operation.
6. Allows adding heating modules and temperature controller, as well as forcing transducer additionally.
7. Available working platform: 600*600*720mm (Length * Weith * Eight).
Scope of Application:
Parts assembling, micro motor axis press-in and other workings like riveting, punching and cutting. |
