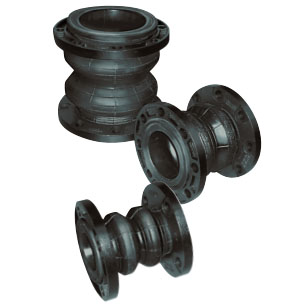

Single-Sphere Flexible Rubber Joint with Floating Flanges 单球法兰连接型橡胶接头 APPLICATIONS 应用范围 This product is mainly applicable for piping systems in commercial and industrial buildings and plants. 此产品主要适用于工业和商业建筑物的管道系统。 Applicable fuids are exclusively water including cold water, warm water, cooled water, sea water, etc. 适用的流体只限于水， 诸如冷水、温水、冷却水、海水等。 MATERIALS 材质表
No.
Parts 部件
Material 材质
1
Flange 法兰
Mild Steel / Ductile Iron 碳钢或球墨铸铁
2
Reinforcing Ring 加强环
Carbon Steel 高碳钢线材
3
Inner Rubber 衬里橡胶
Synthetic Rubber 合成橡胶
4
Outer Rubber 外部橡胶
Synthetic Rubber 合成橡胶
5
Reinforcing Cord 加强层
Synthetic Fiber 合成纤维
Flanges with SS400 and FCD450 in JIS10K, ANSI150, PN16 are standard. For other fanges, please consult us. 碳钢与球墨铸铁法兰连接标准JIS10K,ANSI150, 以及PN16是标准型，如需其他，请联系我司。 Flange material for ANSI150 32mm is SS400 only. ANSI150 32mm法兰材质只有SS400。 Flange material can be changed to SUS304 and SUS316. 法兰材质可更换为SUS304或SUS316。
Temp. vs. Pressure 工作温度对工作压力
Dimensions and Allowable Movements 尺寸和允许偏移值
Nominal Dia.
Dimension [mm]
Mass
[Kg]
Allowable Movement [mm]
Installation Tolerances [mm]
mm
inch
L
φd
T.M.
A.E.
A.C.
A.M.
T.M.
A.E.
A.C.
A.M.
32
1 1/4
125
35
2.0
10
6
10
10°
4
3
6
5°
40
1 1/2
125
35
2.1
10
6
10
10°
4
3
6
5°
50
2
125
45
2.6
10
7
10
10°
4
3
6
5°
62
2 1/2
125
60
3.6
10
7
10
10°
4
3
6
5°
80
3
125
70
3.8
10
7
10
10°
4
3
6
5°
100
4
150
95
4.7
10
10
10
7°
4
3
6
3°
125
5
175
120
6.9
10
10
10
7°
4
3
6
3°
150
6
200
145
10
10
12
10
5°
4
3
6
2°
200
8
200
195
14
10
12
10
5°
4
3
6
2°
250
10
250
245
22
10
15
10
5°
4
3
6
2°
300
12
250
290
25
10
15
10
5°
4
3
6
2°
