差压复阀钟型浮子式蒸汽疏水阀ER105 |
|
|
|
|
点击看大图
|
商店名称: |
上海玉武阀门有限公司 |
商品类型: |
其他未分类 |
商品价格: |
元 |
品牌名称: |
上海玉武 |
商品产地: |
|
有 效 期: |
长期有效 |
点击次数: |
1674 |
发布时间: |
2012年11月14日 |
|
|
|
|
|
|
|
|

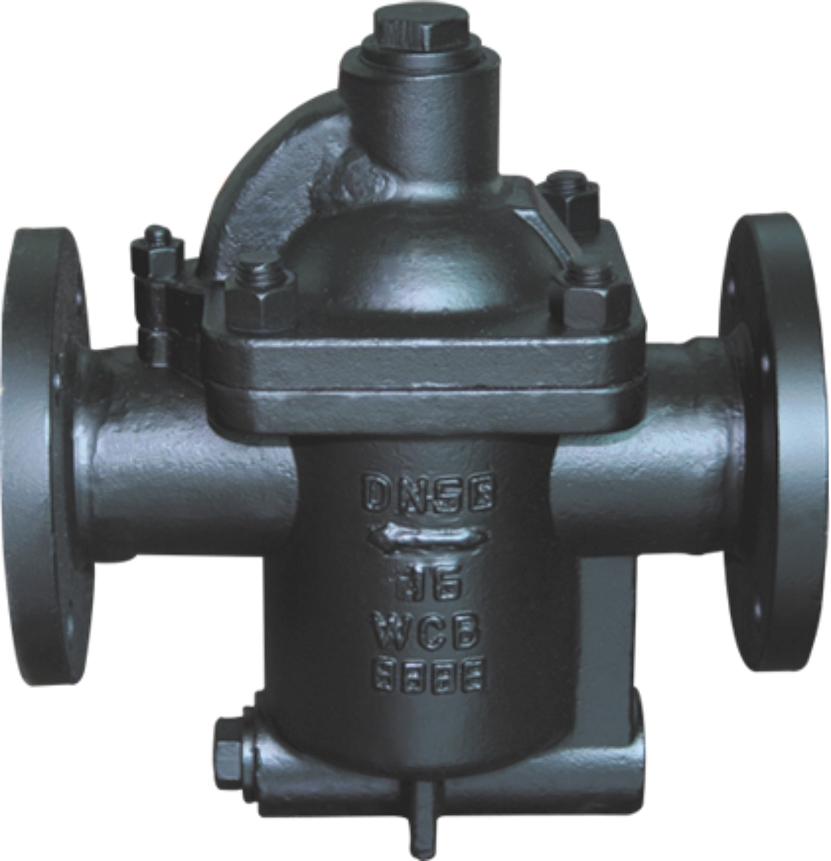

差压复阀钟型浮子式蒸汽疏水阀 Float trap different pressure
产品介绍:ER 差压复阀型蒸汽疏水阀广泛用于石油、化工、印染 、织染、纺织、食品等各种工矿各种高中压蒸汽设备系统。
结构特点:1、该阀采用先进的双阀座机构,主副复阀满足高压力、大排量而体积小。
2、对凝结水德产生量 适应性强, 可间歇排水,汽水分离可靠。
3、背压率高(≤80%),可有效回收凝结水。
4、阀内全不锈钢零件全安装在阀盖上,维修方便,防腐蚀性强
Introduction:ER steam trap with two valve bases enjoys
Extensive applications in petroleum chemical industries。Printing pharmacy,textile
Foods and all kinds of high and middle pressure steam equipments.
Structures:1.This kind of trap adopts two valve bases;bath can meet the need of high pressure ,large discharging amount and small volume
2.Strong ability to adapt to the production of condensed water,reliable separation of ges and water .
3.High rate of back pressure (≤80%),Able to recycle condensed water。
4.Stainless steel parts fixed on the valve cover to facilitate maintenance ,strong abilities to resist corruption.
主要零件材料和性能参数 Main parts and specifications
主要零部件材料表
Main patrs materials
Body/Bonnel
阀体、阀盖
WCB、WC6
性能参数
Performance parameter
Lowest working pressure
最低工作压力
10.0MPa
Clock float
钟型浮子
Austria type body stainless steel
奥式体不锈钢
The lowest supercooling degree
最小过冷度
0℃
Valve seat /valve cote
阀座、阀芯
Stainless alloy steel
不锈合金钢
Highest pemission back pressure rate
最高允许背压率
>85%
In sets Filters
内置过滤网
Stainless steel
不锈钢
Highest pemissible temperature
最高允许温度
铸钢425% Cast steel425%
铬钼钢555%Cast irons 555%
技术参数表 Technological paramerter date
Model
产品型号
Nominaldiameter
公称通 径(DN)
Connection
连接方式
PressureRaring
使用压力Mpa
Maxallowable(℃)
最高允许温度
External dimensions(mm)
Re.weight
查考重量
(kg)
L
H1
H2
H3
ER105
15~40
Thread 螺纹
0.05~0.3、0.7
425
230
155
165
17
ER105F
15~25
Flange 法兰
270
155
165
19.5
32~50
22
ER116F
15~25
0.05~0.5、1.2
270
155
165
19.5
32~50
310
24
ER116F
15~25
0.05~0.7、1.6
270
155
165
19.5
32~50
310
24
ER116F
32~50
0.05~1.6
320
230
192
48
ER20F
15~50
Flange 法兰
0.05~1.6
425
310
146
200
30
ER120F
40~100
0.05~0.8、1.6
400
203
192
49
ER130F
50~100
0.05~2.5
430
190
240
31
ER25W
15~50
Socket weld
承插焊
0.05~2.5
0.05~4.5
0.05~6.5
0.05~10.0
425/550
340
247
145
330
47
ER25F
15~25
Flange 法兰
380
247
145
330
55
32~50
58
